 D o e p f e r    A - 100

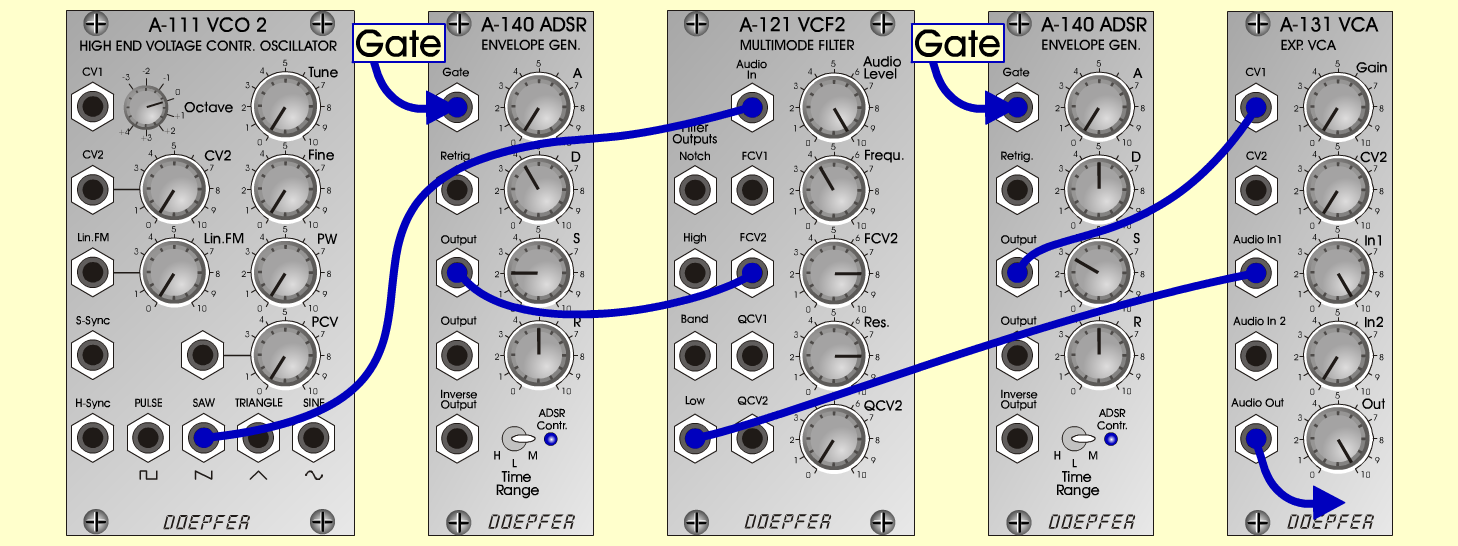

  Connections:   Settings:
    EasyReso1:
  A-111 (Saw)  <=>  A-121 (Audio In)
  A-121 (Low)  <=>  A-131 (Audio In 1)
  A-140/1 (Output)  <=>  A-121 (FCV 2)
  A-140/2 (Output)  <=>  A-131 (CV 1)
  A-131 (Audio Out) <=> Amplifier
  Trigger/Gate and Pitch-Voltage from keyboard.		   A-121 (Audio Level = 10, Freq = 4,
  FCV 2 = 8, Res = 8)
  A-140/1 (A = 0, D = 4, S = 2, R = 5, Range = M)
  A-140/2 (A = 0, D = 5, S = 3, R = 5, Range = M)
  A-131 (Gain = 0, Audio In 1 = 10, Audio Out = 10)
    EasyReso2:
    A-121 (Audio Level = 10, Freq = 4,
  FCV 2 = 7.5, Res = 8)
  A-140/1 (A = 0, D = 4, S = 1.5, R = 5, Range = M)
  A-140/2 (A = 3, D = 5, S = 3, R = 5, Range = M)
  A-131 (Gain = 0, Audio In 1 = 10, Audio Out = 10)
  Notes:

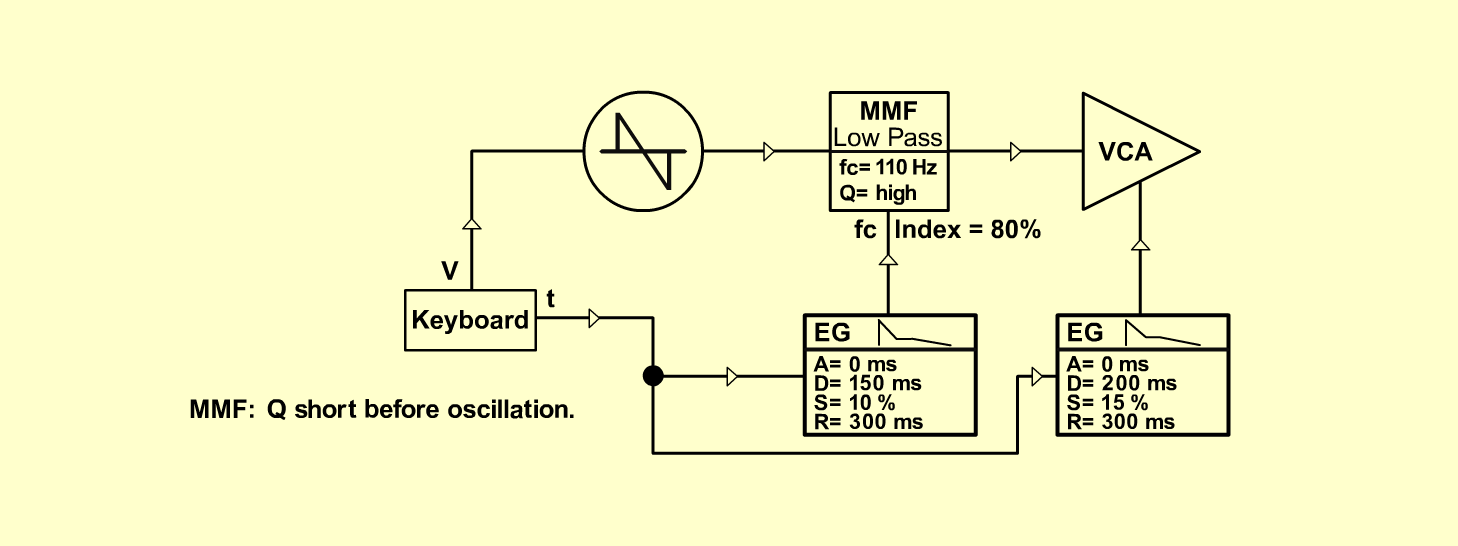

  Set Q from A-121 short before oscillation.
  A-111: The modul A-110 is also possible.		 Josef Mueller






Sound   samples


Pachelbel Canon in D (with dig. effects)
Easyreso 1 (65 Hz)
Easyreso 1 (261 Hz)
Easyreso 2 (65 Hz)
Easyreso 2 (261 Hz)
