Moogli-Bass Home Instruments




 D o e p f e r    A - 100

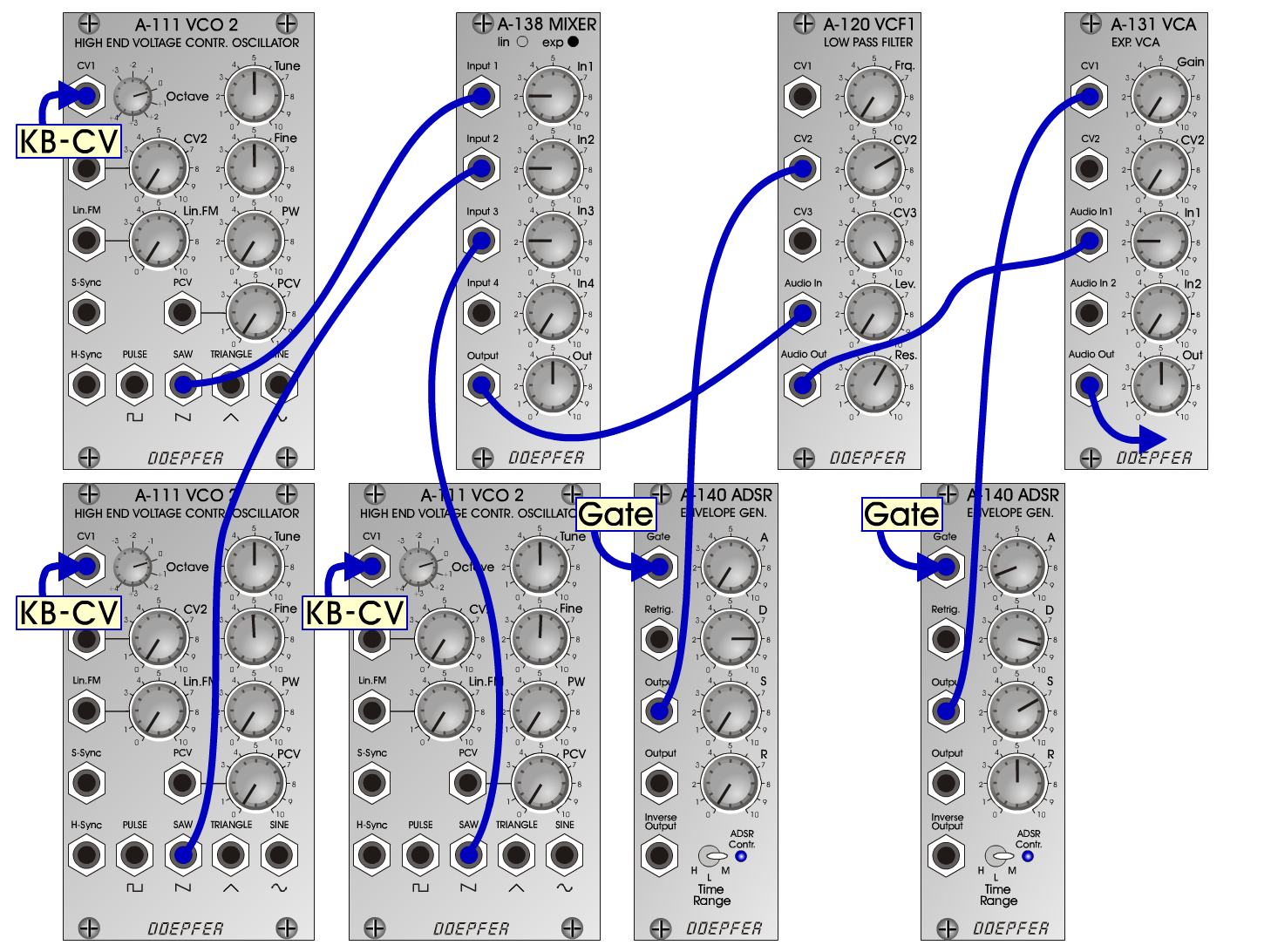

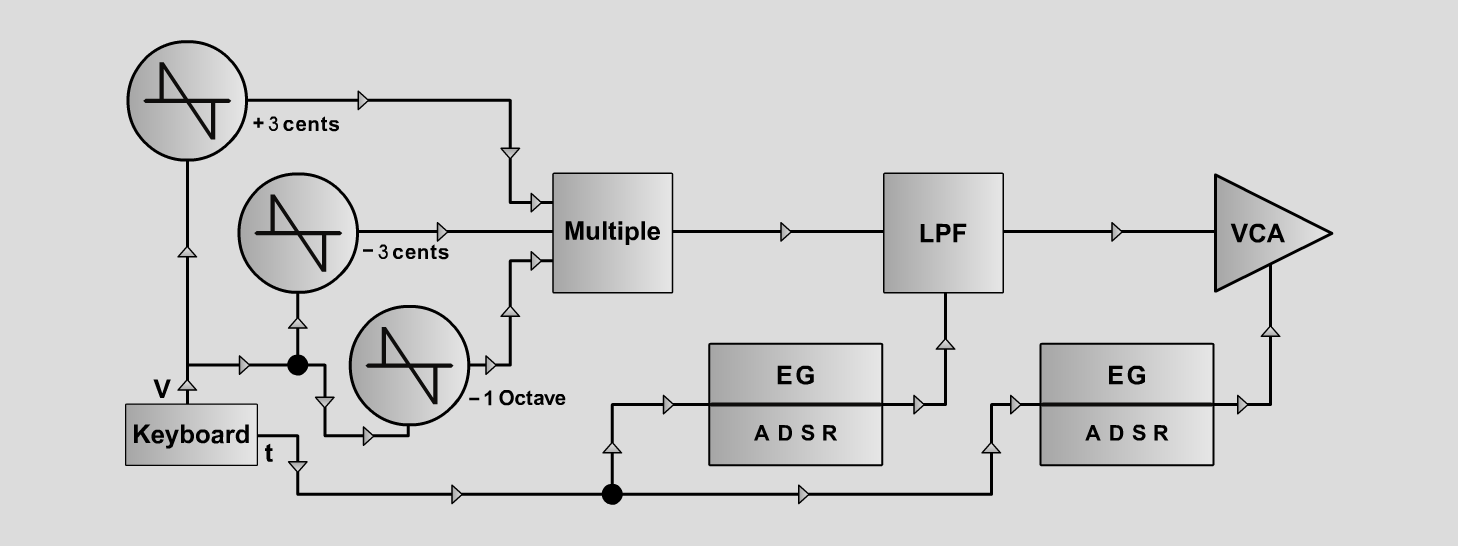

  Connections:   Settings:
      Moogli-Bass1
 A-111/1 (Saw) <=> A-138exp (Input 1)
 A-111/2 (Saw) <=> A-138exp (Input 2)
 A-111/3 (Saw) <=> A-138exp (Input 3)
 A-138exp (Output) <=> A-120 (Audio In)
 A-140/1 (Output) <=> A-131 (CV1)
 A-140/2 (Output) <=> A-120 (CV2)
 A-120 (Audio Out) <=> A-131 (Audio In)
 A-131 (Audio Out) <=> Amp 		 A-138p (In 1 = 2, In 2 = 2, In 3 = 2, Out = 5)
 A-120 (Freq = 0, CV2 = 7, Lev = 10, Res = 6)
 A-140/1 (A = 1.3, D = 8.5, S = 7, R = 5, Range = M)
 A-140/2 (A = 0, D = 8, S = 0, R = 0, Range = M)
 A-131 (Gain = 0, Audio In 1 = 5, Audio Out = 7)
      Moogli-Bass2
     A-138p (In 1 = 2, In 2 = 2, In 3 = 2, Out = 5)
 A-120 (Freq = 0, CV2 = 8, Lev = 10, Res = 6)
 A-140/1 (A = 1.0, D = 8.5, S = 7, R = 5, Range = M)
 A-140/2 (A = 0, D = 8, S = 0, R = 0, Range = M)
 A-131 (Gain = 0, Audio In 1 = 5, Audio Out = 7)
      Moogli-Bass3
     A-138p (In 1 = 2, In 2 = 2, In 3 = 2, Out = 5)
 A-120 (Freq = 2, CV2 = 6, Lev = 8, Res = 6.5)
 A-140/1 (A = 1.3, D = 8.5, S = 7, R = 5, Range = M)
 A-140/2 (A = 0, D = 7, S = 0, R = 0, Range = M)
 A-131 (Gain = 0, Audio In 1 = 2, Audio Out = 5)
 Notes:
 Tuning:
 A-111/1 = -1 octave, A-111/2 = -3 cents, A-111/3 = +3 cents		 Josef Mueller






Sound   samples


Bach Passacaglia (BWV 582)
Second instrument: E-Organ
Moogli-Bass 1 A
Moogli-Bass 1 B
Moogli-Bass 1 C
Moogli-Bass 2 A
Moogli-Bass 2 B
Moogli-Bass 2 C
Moogli-Bass 3 A
Moogli-Bass 3 B
Moogli-Bass 3 C
